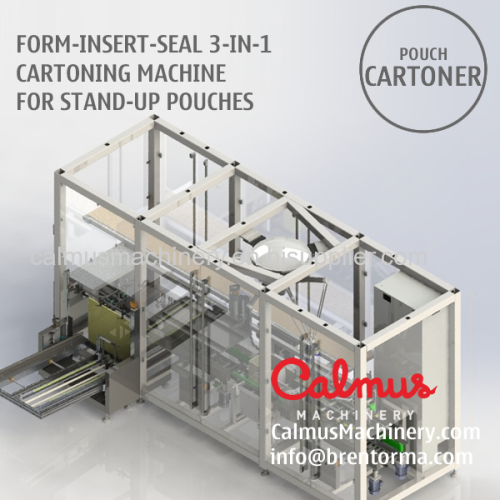

Form-Insert-Seal 3-in-1 Case Packer | Monoblock Cartoning Machine for Packaging Stand Up Pouches

This is a fully-automatic form-insert-seal monoblock cartoning machine for stand up pouches designed and manufactured for a US customer. A delta robot (ABB IRB 360 FlexPicker) is employed for picking and inserting filled pouches in cartons. ABB IRB 360 FlexPicker is capable of the fastest picking applications and have been optimized for packing applications. The robot has outstanding motion performance with the shortest cycle times, precision accuracy for payloads from 1 to 8 kg. Carton forming, pouch inserting and carton sealing 3-in-1. This monoblock case packer is easy to be installed and an ideal cartoning machine for the epedemic period as it is the diffcult time to have technicians for installation from suppliers abroad.

Features:

1. Form-insert-seal 3-in-1, with a smaller footprint.

2. Easy to install.

3. System pauses and alert if cartons or tapes are empty.

Specifications:

Capacity: 450 cartons, 2700 x 1 litre pouches/hour

Compressed air: 0.6-0.8MPa

Max tape roll diameter: 300mm

System weight: 6,000kg

Power supply: 3 phases, customized voltage

System dimensions: 5,300*2,800*2,800mm.

Power consumption: 5kW
