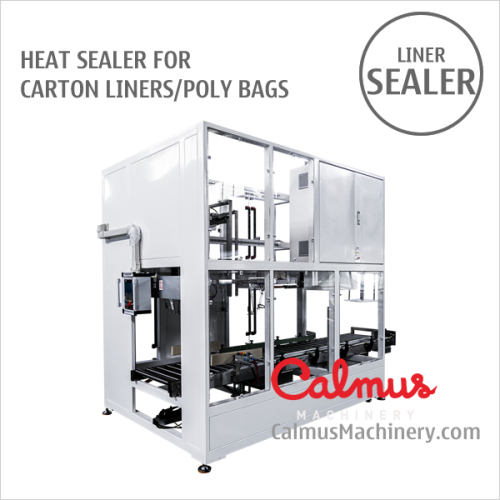

Fully-automatic Carton Liner Sealing Machine | Poly Bag Sealer

This carton liner poly bag sealer is designed to heat-seal liner bags in boxes online. The sealer uncuffs the bag off the carton flaps, then folds it inwards from sides, vacuumizes the bag (optional), heat-seals the bag top and then folds it in the carton. This bag sealer reduces labor and material costs, is simple to operate and easy to adjust. High efficiency and labor saving.

Specifications:

Sealing capacity: 3-5 cartons/min

Film width: 460-840mm

Applicable carton dims: L250-550*W200-400*H150-400mm, also can be customized

Power supply: 3 phases, 7 kW

Compressed air: 6-7 bar

Air consumption: 100 NL/min

Machine dims: L3322*W2177*H2350mm (for reference only)

We also have a bag inserter or liner placer for lining cartons with poly bags by one each. The whole erect-line-fill-seals bag in box line is also available.
